• 中压螺杆空压机

    详细信息

     品牌:卓颖JOY MACHINERY  型号:JM-15AM  压缩介质:空气
     润滑方式:机油润滑空压机  功率:30-250 kw 外形尺寸(长*宽*高):3760×2260×2260 mm
     型式:固定式压缩机  性能:低噪音;可变频  噪音:62-65 dB
     用途:提供压缩气源  电压Voltage:380V/3Ph/50hz  启动方式Logon Mode:Y-Δ启动
    中压螺杆空压机


    产品简介:
    1、采用德国全线性螺杆主机,*大压力可以达到40 Bar
    2、采用超重压轴承,迷宫式密封,保证高压的主机无泄漏
    3、采用内置式油道润滑,内部调压,且润滑油的冷却效果*佳
    4、整机采用高压冷却器和特殊的水冷式,使空压机在高压之下低温运行,大大延长了空压机的使用寿命
    5、*优的结构、*高的可靠性
    在矿山、塑料吹瓶、饮料厂制瓶吹瓶、石油化工等行业,中压空气压缩机应用非常广泛。由于制造较常压空压机大,因而制造厂家,尤其是质量稳定的厂家少之又少。



    卓颖机械中压系列电动螺杆空气压缩机技术参数
    Model JM-15AM JM-18.5AM JM-22AM JM-30AM JM-37AM JM-45AM JM-55AM JM-75AM
    Capacity/Pressure
    m3/min/Mpa
    1.45/3.0 1.73/3.0 2.35/3.0 2.93/3.0 3.65/3.0 4.70/3.0 6.00/3.0 7.90/3.0
    1.12/4.0 1.38/4.0 1.65/4.0 2.28/4.0 2.83/4.0 3.57/4.0 4.50/4.0 6.50/4.0
    Motor KW 15 18.5 22 30 37 45 55 75
    HP 20 25 30 40 50 60 75 100
    RPM 2930 2930 2940 2950 2950 2970 2970 2970
    Voltage/Hz 380V/3Ph/50Hz, Special voltage can be produced.
    Start Direct  Y-Δ Start
    Noise DBA 63±2 65±2 65±2 66±2 67±2 68±2 70±2 73±2
    Outlet (Inch) G3/4" G3/4" G3/4" G3/4" G3/4" G3/4" G1" G1"
    Working Temp() -5+45
    Discharge Air Temp() <ambient temperature+25
    Weight(KG) 846 868 900 1217 1232 1286 2000 3820
    Dimension Length(mm) 1650 1900 2050 2250
    Weight(mm) 1150 1420 1460 1600
    Height(mm) 1315 1460 1500 1800
    Oil Content PPM 2
    Cooling Fan ,KW 0.635 2.0 4.3

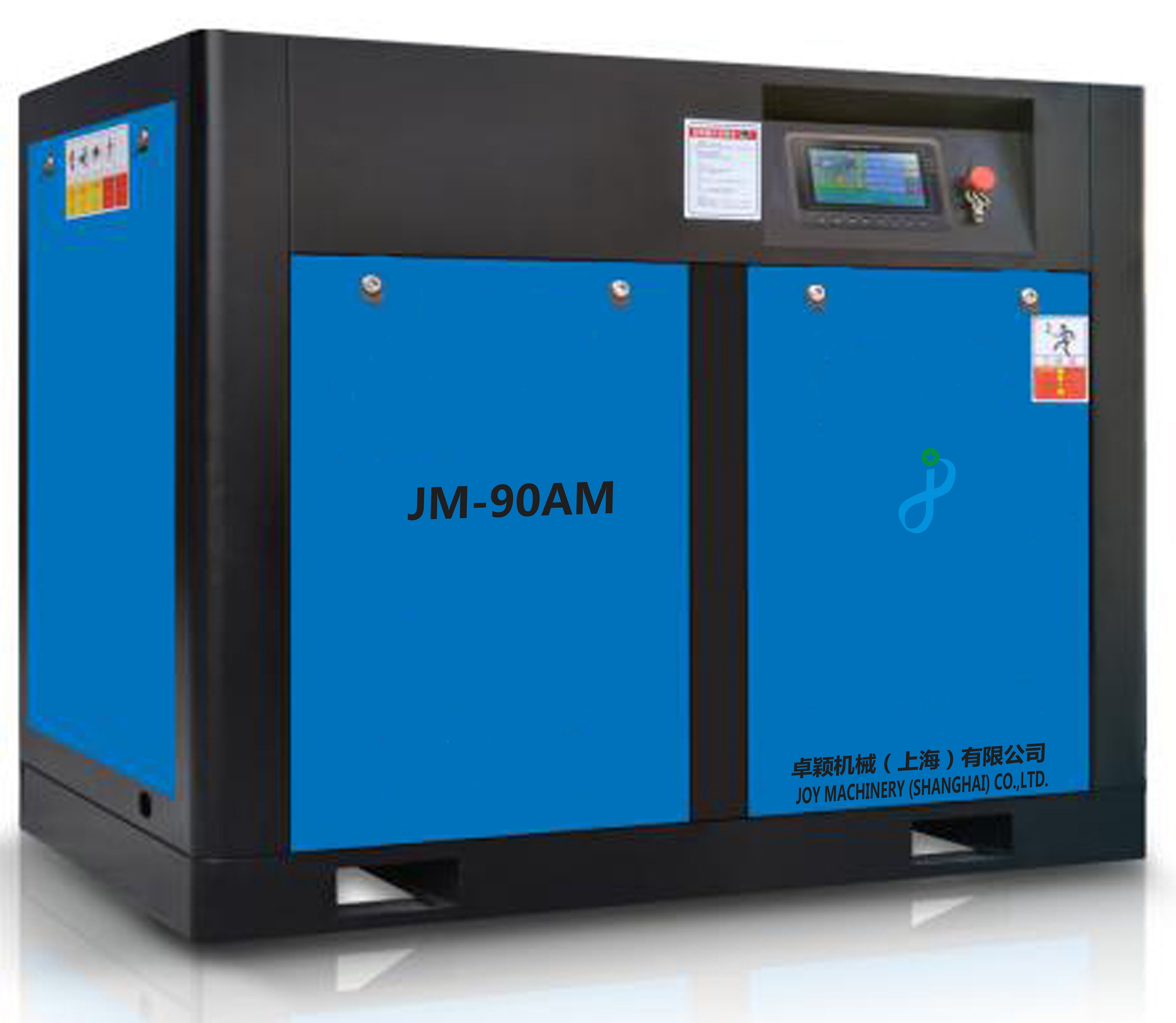

    Model JM-90AM JM-110AM JM-132AM JM-160AM JM-185AM JM-200AM JM-250AM
    Capacity/Pressure
    m3/min/Mpa
    10.0/3.0 12.2/3.0 14.2/3.0 17.3/3.0 19.6/3.0 22.8/3.0 28.2/3.0
    7.54/4.0 9.70/4.0 11.7/4.0 14.2/4.0 16.6/4.0 17.9/4.0 22.8/4.0
    Motor KW 90 110 132 160 185 200 250
    HP 125 150 175 215 250 270 340
    RPM 2970 2980 2980 2980 2980 2980 2980
    Voltage/Hz
    Start
    Noise DBA 73±2 78±2 78±2 78±2 78±2 78±2 78±2
    Outlet (Inch) G1" G1" G1 1/2" G1 1/2" G1 1/2" G1 1/2" G2"
    Working Temp()
    Discharge Air Temp()
    Weight(KG) 3900 3920 4080 6450 6520 6560 7200
    Dimension Length(mm) 2250 2400 2660 2900
    Weight(mm) 1600 1700 1800 1800
    Height(mm) 1800 1550 1800 2000
    Oil Content PPM
    Cooling Fan ,KW 4.3 7.0 11.0




    卓颖机械(上海)有限公司

    卓颖机械(上海)有限公司坐落于美丽的长江三角洲东畔,国际经济贸易中心申城——上海市浦东工业园区内,是一家压缩系统及机电自动化设备专业化公司。
    卓颖机械专注于为客户提供性能一流、经济高效、低碳环保的高新技术产品,提供专业、周到、快捷的服务,真诚服务国内外用户,产品出口亚洲、非洲、欧美及美洲等全球50多个国家和地区,获得了广泛的市场认可和赞誉。
    公司产品系列广泛,产品涵盖:
    活塞式空压机、螺杆空压机、移动式空压机、无油空压机、永磁变频空压机、中高压空压机、低压空压机、双级压缩空压机、后处理系统(储气罐、冷干机及精密过滤器等)空气压缩系统与净化设备;
    机械自动化设备、特殊非标机械等,并能根据用户的需求进行个性化设计与制造。
    我们的产品被广泛应用于工矿企业、城市建设、石油、煤炭、电力、新能源、纺织、地质、化工、冶金、机械制造、钢铁、铁路、地铁、汽车、电子、医药、食品、饮料等各行各业。
    公司本着“客户的满意就是我们矢志不渝的追求”的企业精神,在产品研发上始终坚持节能、可靠、静音、环保的设计理念,不断开拓、勇于创新。耐心倾听客户的声音,满足客户需求,始终为客户提供***优的设备配置方案。
    “卓而不凡,优质新颖”———卓颖机械(上海)有限公司,以实际的行动践行我们的诺言,努力成为广大客户和合作者长期、稳定且***值得信赖的商业伙伴!
    公司全体员工竭诚欢迎各界友人惠顾、洽谈合作,让我们用真诚与智慧共同缔造美好的生存空间。让我们共同携手,共创美好未来!

    Joy Machinery (Shanghai) Co.,ltd. Is located in the beautiful Yangtze River Delta, international economic and Trade Center in Shanghai –in Shanghai Pudong Industrial Park,which is a professional mechanical compression system and automation equipment integrated provider, one of the famous brand.
    Joy Machinery is dedicated to providing first-class performance, high efficiency, low carbon environmental protection and high-tech products for customers, providing professional and thoughtful and efficient service, service to customers around the world, our products have been exported to Southeast Asia, Africa, Europe and America, more than 50 countries and regions around the world, enjoying widely recognition and reputation.
    Company product range is wide, portfolio as follows:
    Piston air compressor, screw air compressor, portable air compressor, oil free air compressor, air compressor, permanent magnet variable frequency air compressor, low pressure air compressor, two-stage compression air compressor, air dryer and precision filter, etc.
    Mechanical automation equipment, non-standard machinery, etc., and can be customized according to the needs of users.
    Our products are widely used in industrial and mining enterprises, city construction, petroleum, coal, electricity, new energy, textile, metallurgy, geology, chemical industry, machinery manufacturing, iron and steel, railway, subway, automobile, electronics, medicine, food, beverage and other industries.
    Our company spirit is "customer satisfaction is our eternal pursuit", always adhere to the design idea of energy saving, reliability, low noise and environmental protection in product development, and constant innovation. Patiently listening to the voice of customers, to meet customer needs, and always provide customers with the best appropriate equipment.
    "High quality, good service “--- Joy Machinery (Shanghai) Co., Ltd. We use our practical actions to keep our promise, strive to become your long-term, most trusted business partner in the world!
    All company staff warmly welcome friends from all walks of life to visit us and discuss the cooperation, let us work together to create a more bright future!
